growcube-client documentation

Author:: Jonny Bergdahl
Email:: github@bergdahl.org
Date:: 2023-12-02
Version:: 1.0.10

Python-growcube-client

This is an asyncio Python library to communicate with Elecrow GrowCube devices. Disclosure: This is an affiliate link for Hands on Katie. If you make a purchase through this link, she may earn a small commission at no additional cost to you.

By using this library you can communicate directly with the device, without the need to use the phone app.

Once connected to a device, the library will listen for messages from the device and use a callback function to return parsed messages to the application. The application can also send commands to the device.

Installation

pip install growcube-client

Documentation

The full library documentation can be found here.

Getting started

The src/growcube_sample.py file shows how to use the library. It defines a callback function where the GrowcubeClient sends messages as they arrive from the Growcube device. To use the sample, change the HOST variable to the host name or IP address of the Growcube device. Then run the sample with:

python3 growcube_sample.py

Source code:

import asyncio
from growcube_client import GrowcubeReport, GrowcubeClient


# Define a on_message_callback function to print messages to the screen
def callback(report: GrowcubeReport) -> None:
    # Just dump the message to the console
    print(f"Received: {report.get_description()}")


async def main(host: str) -> None:
    # Create a client instance
    client = GrowcubeClient(host, callback)
    print(f"Connecting to Growcube at {HOST}")

    # Connect to the Growcube and start listening for messages
    await client.connect()

    while True:
        await asyncio.sleep(2)

if __name__ == "__main__":
    # Set host name or IP address
    HOST = "172.30.2.72"

    asyncio.run(main(HOST))

Sample script output.

Connecting to Growcube at 172.30.2.70
Received: RepDeviceVersionCmd: version 3.6, device_id 12663500
Received: RepLockstateCmd: lock_state False
Received: RepWaterStateCmd: water_warning: True
Received: RepSTHSateCmd: pump: 0, moisture: 26, humidity: 41, temperature: 24
Received: RepSTHSateCmd: pump: 1, moisture: 26, humidity: 41, temperature: 24
Received: RepSTHSateCmd: pump: 2, moisture: 30, humidity: 41, temperature: 24
Received: RepSTHSateCmd: pump: 3, moisture: 33, humidity: 41, temperature: 24

Important device states

Report class	Use
WaterStateGrowcubeReport	Water warning
Mo istureHumidityStateGrowcubeReport	Moisture, humidity and temperature, reported per channel. Note: Humidity and temperature is the same for all 4
DeviceVersionGrowcubeReport	Device id and firmware version
PumpOpenGrowcubeReport	Pump outlet is open for channel
PumpCloseGrowcubeReport	Pump outlet is closed for channel
CheckSensorGrowcubeReport	Sensor not connected for channel
CheckPumpBlockedGrowcubeReport	Pump outlet is blocked for channel
Chec kSensorNotConnectedGrowcubeReport	Sensor is not connected for channel
LockStateGrowcubeReport	Device is in locked mode
CheckOutletLockGrowcubeReport	Pump outlet is locked for channel

More advanced use

The src/growcube_app.py file shows how to use the library in a more advanced application.

To use the app, you need to install wxPython first, please follow the directions here.

Start the app with:

python3 growcube_app.py

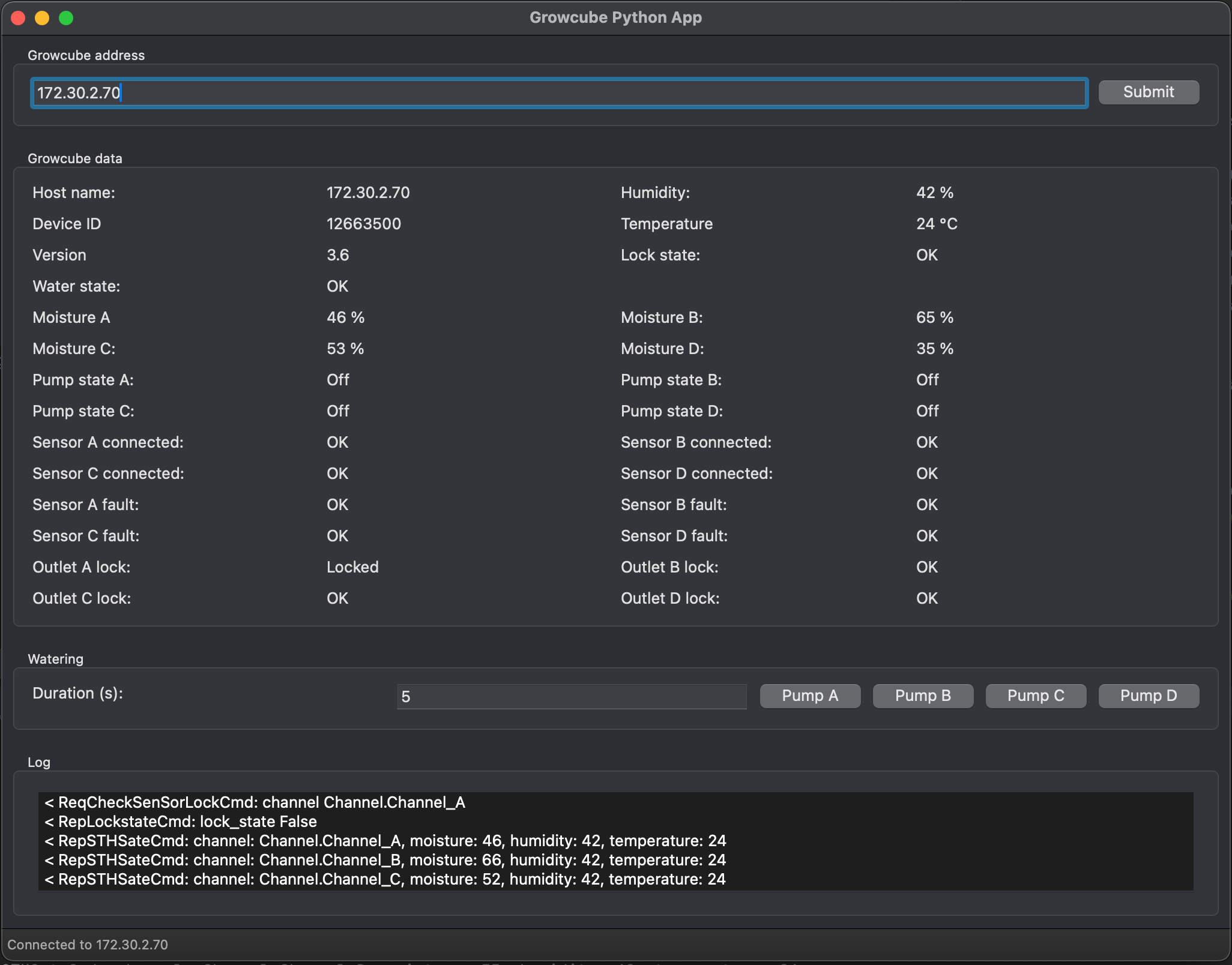

You are greeted with a screen asking for the host name or IP address of the Growcube device. Enter that and click the Submit button. The app will connect to your Growcube and starts displaying received data.

You can water plants by setting a watering duration and clicking the Pump X button.

Adopt Growcube device

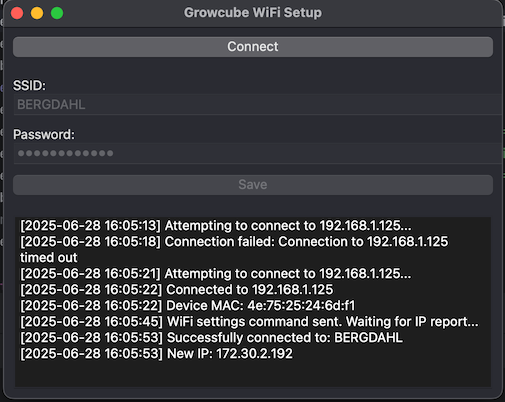

The src/growcube_adopt.py file can be used to set WiFi credentials of a new or factory reset Growcube device, without the need for the Growcube phone app.

Make sure the Growcube flashes it’s red and blue LED’s.
Connect to the Growcube_Xxxx WiFi
Run the growcube_adopt.py file
Press the Connect button and wait for connection
Enter the WiFi credentials and press the Save button
Wait for the device to connect to WiFi
Take a note of the IP address or MAC address as needed

Your Growcube is now connected to your WiFi.

Auto discovery

You can use the sample script src/growcube_discover.py to search for devices on your network. By default, it will search for devices on the local network, but if the devices are located in a separate subnet you can also specify that network to search in.

python3 growcube_discover.py 192.168.4.0/24

The output will look like this.

Discovering Growcube clients on subnet 172.30.2.0/24
Trying to connect to 172.30.2.1
Trying to connect to 172.30.2.2
...
Trying to connect to 172.30.2.254
Found 2 devices:
Found device: 172.30.2.71
Found device: 172.30.2.70
